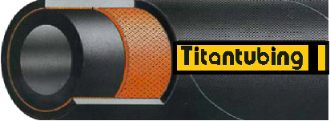

HOSE CONSTRUCTION:
Tube: oil resistant synthetic rubber
Reinforcement: one textile braid wire braid
Cover: abrasion, ozone and weather resistant synthetic rubber
Temperature range (medium): -40°C to +121°C
Nominal ф |
Inside ф |
Outside ф |
Working pressure
|
Test pressure |
Burst pressure
|
Bend radius
|
Weight
|
mm |
dash |
inch |
Min |
Max |
Min |
Max |
bar |
psi |
bar |
psi |
bar |
psi |
mm |
kg/m |
5 |
-3 |
3/16 |
4.6 |
5.4 |
10.0 |
11.6 |
25 |
363 |
50 |
725 |
100 |
1450 |
35 |
0.09 |
6 |
-4 |
1/4 |
6.2 |
7.0 |
11.6 |
13.2 |
25 |
363 |
50 |
725 |
100 |
1450 |
45 |
0.11 |
8 |
-5 |
5/16 |
7.7 |
8.5 |
13.1 |
14.7 |
20 |
290 |
40 |
580 |
80 |
1160 |
65 |
0.133 |
10 |
-6 |
3/8 |
9.3 |
10.1 |
14.7 |
16.3 |
20 |
290 |
40 |
580 |
80 |
1160 |
75 |
0.15 |
12 |
-8 |
1/2 |
12.3 |
13.5 |
17.7 |
19.7 |
16 |
232 |
32 |
464 |
64 |
928 |
90 |
0.19 |
16 |
-10 |
5/8 |
15.5 |
16.7 |
21.9 |
23.9 |
16 |
232 |
32 |
464 |
64 |
928 |
115 |
0.277 |
|
