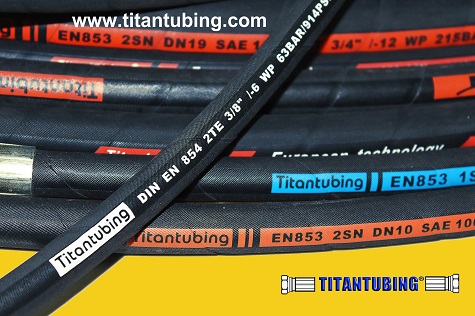

DIN EN 854 2TE

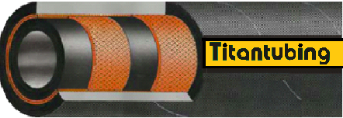

HOSE CONSTRUCTION:
Tube: oil resistant synthetic rubber
Reinforcement: two textile braids wire braid
Cover: abrasion, ozone and weather resistant synthetic rubber
Temperature range (medium): -40°C to +121°C
Nominal ф |
Inside ф |
Outside ф |
Working pressure
|
Test pressure |
Burst pressure
|
Bend radius
|
Weight
|
mm |
dash |
inch |
Min |
Max |
Min |
Max |
bar |
psi |
bar |
psi |
bar |
psi |
mm |
kg/m |
5 |
-3 |
3/16 |
4.6 |
5.4 |
11.0 |
12.6 |
80 |
1160 |
160 |
2320 |
320 |
4640 |
35 |
0.117 |
6 |
-4 |
1/4 |
6.2 |
7.0 |
12.6 |
14.2 |
75 |
1088 |
150 |
2176 |
300 |
4352 |
40 |
0.139 |
8 |
-5 |
5/16 |
7.7 |
8.5 |
14.1 |
15.7 |
68 |
986 |
136 |
1972 |
272 |
3944 |
50 |
0.157 |
10 |
-6 |
3/8 |
9.3 |
10.1 |
15.7 |
17.3 |
63 |
914 |
126 |
1828 |
252 |
3656 |
60 |
0.183 |
12 |
-8 |
1/2 |
12.3 |
13.5 |
18.7 |
20.7 |
58 |
841 |
116 |
1682 |
232 |
3364 |
70 |
0.222 |
16 |
-10 |
5/8 |
15.5 |
16.7 |
22.9 |
24.9 |
50 |
725 |
100 |
1450 |
200 |
2900 |
90 |
0.316 |
19 |
-12 |
3/4 |
18.6 |
19.8 |
26.0 |
28.0 |
45 |
653 |
90 |
1306 |
180 |
2612 |
110 |
0.37 |
25 |
-16 |
1 |
25.0 |
26.4 |
32.9 |
35.9 |
40 |
580 |
80 |
1160 |
160 |
2320 |
130 |
0.547 |
|
