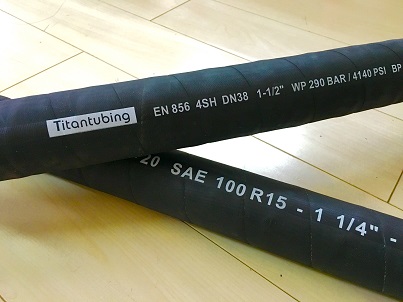

DIN EN 856 4 SH
HOSE CONSTRUCTION:
Tube: oil resistant synthetic rubber
Reinforcement: four high tensile steel wire spiral layers
Cover: abrasion, ozone and weather resistant synthetic rubber
Temperature range (medium): -40°C to +121°C
Nominal ф |
Inside ф |
Braid ф |
Outside ф |
Working pressure
|
Test pressure |
Burst pressure
|
Bend radius
|
Weight
|
mm |
dash |
inch |
Min |
Max |
Min |
Max |
Min |
Max |
bar |
psi |
bar |
psi |
bar |
psi |
mm |
kg/m |
19 |
-12 |
3/4 |
18.6 |
19.8 |
27.6 |
29.2 |
31.4 |
33.0 |
420 |
6090 |
840 |
12180 |
1680 |
24360 |
280 |
1.70 |
25 |
-16 |
1 |
25.0 |
26.4 |
34.4 |
36.0 |
37.5 |
39.9 |
380 |
5510 |
760 |
11020 |
1520 |
22040 |
340 |
2.50 |
31 |
-20 |
1-1/4 |
31.4 |
33.0 |
40.9 |
42.9 |
43.9 |
47.1 |
325 |
4710 |
650 |
9425 |
1300 |
18850 |
460 |
3.00 |
38 |
-24 |
1-1/2 |
37.7 |
39.3 |
47.8 |
49.8 |
51.9 |
55.1 |
290 |
4205 |
580 |
8410 |
1160 |
16820 |
560 |
3.60 |
51 |
-32 |
2 |
50.4 |
52 |
62.2 |
64.2 |
66.5 |
69.7 |
250 |
3625 |
500 |
7250 |
1000 |
14500 |
700 |
5.00 |
|
