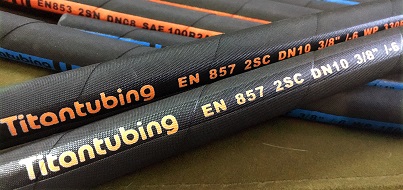

DIN EN 857 2 SC

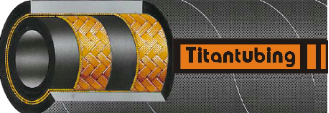

HOSE CONSTRUCTION:
Tube: oil resistant synthetic rubber
Reinforcement: two high tensile steel wire braids
Cover: abrasion, ozone and weather resistant synthetic rubber
Temperature range (medium): -40°C to +121°C
Nominal ф |
Inside ф |
Braid ф |
Outside ф |
Working pressure
|
Test pressure |
Burst pressure
|
Bend radius
|
Weight
|
mm |
dash |
inch |
Min |
Max |
Min |
Max |
Max |
bar |
psi |
bar |
psi |
bar |
psi |
mm |
kg/m |
6 |
-4 |
1/4 |
6.2 |
7.0 |
10.6 |
11.7 |
14.2 |
400 |
5800 |
800 |
11600 |
1600 |
23200 |
75 |
0.30 |
8 |
-5 |
5/16 |
7.7 |
8.5 |
12.1 |
13.3 |
16.0 |
350 |
5075 |
700 |
10150 |
1400 |
20300 |
85 |
0.34 |
10 |
-6 |
3/8 |
9.3 |
10.1 |
14.4 |
15.6 |
18.3 |
330 |
4785 |
660 |
9570 |
1320 |
19140 |
90 |
0.42 |
12 |
-8 |
1/2 |
12.3 |
13.5 |
17.5 |
19.1 |
21.5 |
275 |
3990 |
550 |
7975 |
1100 |
15950 |
130 |
0.54 |
16 |
-10 |
5/8 |
15.5 |
16.7 |
20.5 |
22.3 |
24.7 |
250 |
3625 |
500 |
7250 |
1000 |
14500 |
170 |
0.68 |
19 |
-12 |
3/4 |
18.6 |
19.8 |
24.6 |
26.4 |
28.6 |
215 |
3120 |
430 |
6235 |
850 |
12325 |
200 |
0.80 |
25 |
-16 |
1 |
25.0 |
26.4 |
32.5 |
34.3 |
36.6 |
165 |
2390 |
330 |
4785 |
660 |
9570 |
250 |
1.15 |
|
