JET WASH HOSE (single wire braided)
Smooth /Wrapped cover

TUBE :SYNTHETIC RUBBER.
REINFORCEMENT :HIGH TENSILE STEEL WIRE BRAID.
COVER : SMOOTH/WRAPPED SYNTHETIC RUBBER.
TEMPERATURE RANGE: -40℃～+121℃ / +155°C (difficult prices for 121°C & 155°C)

Inside			Outside	Working Pressure		Burst Pressure		Bend Radius	Weight	Standard Pack
Dash	inch	mm	mm	BAR	PSI	BAR	PSI	mm	kg/mt	M/Roll
-3	3/16	4.8	11.3	250	3625	1000	14500	90	0.2	100
-4	1/4	6.4	12.9	225	3263	900	13050	100	0.25	100
-5	5/16	7.9	14.6	215	3118	850	12325	115	0.31	100
-6	3/8	9.5	17	180	2610	720	10440	130	0.36	100
-8	1/2	12.7	20.1	160	2320	640	9280	180	0.45	100
-10	5/8	16	23.2	130	1885	520	7540	200	0.52	50
-12	3/4	19	27.2	105	1523	420	6090	240	0.65	50
-16	1	25.4	34.9	88	1276	350	5075	300	0.91	50
-20	1 1/4	31.8	42.5	63	914	250	3625	420	1.3	40
-24	1 1/2	38.1	49.4	50	725	200	2900	500	1.7	40
-32	2	50.8	62.9	40	580	160	2320	630	2	40

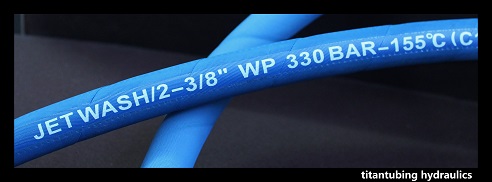

JET WASH HOSE(two wires braided)
Smooth/Wrapped cover
REINFORCEMENT :HIGH TENSILE 2 STEEL WIRE BRAIDS.

Inside			Outside	Working Pressure		Burst Pressure		Bend Radius	Weight	Standard Pack
Dash	inch	mm	mm	BAR	PSI	BAR	PSI	mm	kg/mt	M/Roll
-3	3/16	4.8	12.9	415	6018	1650	23925	90	0.32	100
-4	1/4	6.4	14.5	400	5800	1600	23200	100	0.36	100
-5	5/16	7.9	16.2	350	5075	1400	20300	115	0.45	100
-6	3/8	9.5	18.6	330	4785	1320	19140	130	0.54	100
-8	1/2	12.7	21.7	275	3988	1100	15950	180	0.68	100
-10	5/8	16	24.9	250	3625	1000	14500	205	0.8	50
-12	3/4	19	28.8	215	3118	850	12325	240	0.94	50
-16	1	25.4	37.6	165	2393	650	9425	300	1.35	50
-20	1 1/4	31.8	47.4	125	1813	500	7250	420	2.15	40
-24	1 1/2	38.1	53.7	90	1305	360	5220	500	2.65	40
-32	2	50.8	66.4	78	1131	310	4500	630	3.42	40
