SAE 100 R17   '

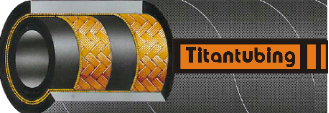

HOSE CONSTRUCTION:
Tube: oil resistant synthetic rubber
Reinforcement:one or two high tensile steel wire braids
Cover: abrasion, ozone and weather resistant synthetic rubber
Temperature range (medium): -40°C to +121°C
Nominal ф |
Inside ф
|
Braid ф
|
Outside ф
|
Working pressure
|
Test pressure |
Burst pressure
|
Bend radius
|
Weight
|
mm |
dash |
inch |
Min |
Max |
Max |
Max |
bar |
psi |
bar |
psi |
bar |
psi |
mm |
kg/m |
6 |
-4 |
1/4 |
6.2 |
7.0 |
11.0 |
13.2 |
210 |
3045 |
420 |
6090 |
840 |
12180 |
50 |
0.169 |
8 |
-5 |
5/16 |
7.7 |
8.5 |
13.0 |
15.0 |
210 |
3045 |
420 |
6090 |
840 |
12180 |
55 |
0.210 |
10 |
-6 |
3/8 |
9.3 |
10.1 |
15.0 |
17.0 |
210 |
3045 |
420 |
6090 |
840 |
12180 |
65 |
0.254 |
12 |
-8 |
1/2 |
12.3 |
13.5 |
18.8 |
21.1 |
210 |
3045 |
420 |
6090 |
840 |
12180 |
90 |
0.466 |
16 |
-10 |
5/8 |
15.5 |
16.7 |
23.6 |
25.9 |
210 |
3045 |
420 |
6090 |
840 |
12180 |
105 |
0.586 |
19 |
-12 |
3/4 |
18.6 |
19.8 |
27.7 |
30.3 |
210 |
3045 |
420 |
6090 |
840 |
12180 |
125 |
0.749 |
25 |
-16 |
1 |
25.0 |
26.4 |
35.6 |
38.6 |
210 |
3045 |
420 |
6090 |
840 |
12180 |
150 |
1.457 |
|
