DIN EN 854 SAE 100 R 3_wps9E3C.tmp.png)

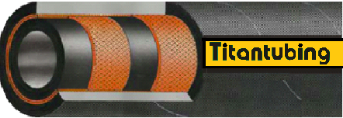

HOSE CONSTRUCTION:
Tube: oil resistant synthetic rubber
Reinforcement: two textile braids wire braid
Cover: abrasion, ozone and weather resistant synthetic rubber
Temperature range (medium): -40°C to +121°C
Nominal ф |
Inside ф |
Outside ф |
Working pressure
|
Test pressure |
Burst pressure
|
Bend radius
|
Weight
|
mm |
dash |
inch |
Min |
Max |
Min |
Max |
bar |
psi |
bar |
psi |
bar |
psi |
mm |
kg/m |
5 |
-3 |
3/16 |
4.6 |
5.4 |
11.9 |
13.5 |
105 |
1520 |
210 |
3050 |
420 |
6090 |
75 |
0.16 |
6 |
-4 |
1/4 |
6.2 |
7.0 |
13.5 |
15.1 |
87 |
1260 |
175 |
2540 |
350 |
5075 |
75 |
0.18 |
8 |
-5 |
5/16 |
7.7 |
8.5 |
16.7 |
18.3 |
84 |
1220 |
168 |
2440 |
335 |
4860 |
100 |
0.27 |
10 |
-6 |
3/8 |
9.3 |
10.1 |
18.3 |
19.8 |
78 |
1130 |
157 |
2280 |
315 |
4570 |
100 |
0.31 |
12 |
-8 |
1/2 |
12.3 |
13.5 |
23.0 |
24.6 |
70 |
1015 |
140 |
2030 |
280 |
4060 |
125 |
0.45 |
16 |
-10 |
5/8 |
15.5 |
16.7 |
26.2 |
27.8 |
61 |
885 |
122 |
1770 |
245 |
3550 |
140 |
0.53 |
19 |
-12 |
3/4 |
18.6 |
19.8 |
31.0 |
32.5 |
52 |
750 |
105 |
1520 |
210 |
3045 |
150 |
0.72 |
25 |
-16 |
1 |
25.0 |
26.4 |
36.9 |
39.3 |
39 |
570 |
78 |
1130 |
157 |
2280 |
205 |
0.90 |
31 |
-20 |
1-1/4 |
31.4 |
33.0 |
42.9 |
46.0 |
26 |
380 |
52 |
750 |
105 |
1520 |
250 |
1.07 |
|
