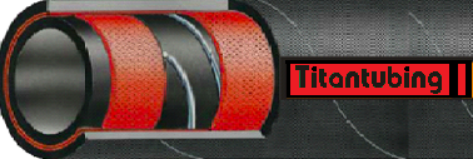

HOSE CONSTRUCTION:
Tube: oil resistant synthetic rubber
Reinforcement: textile layers, zinc plated steel wire helix
Cover: abrasion, ozone and weather resistant synthetic rubber
Temperature range (medium): -40°C to +121°C
Nominal ф |
Inside ф |
Outside ф |
Working pressure
|
Test pressure |
Burst pressure
|
Bend radius
|
Weight
|
mm |
dash |
inch |
Min |
Max |
Max |
bar |
psi |
bar |
psi |
bar |
psi |
mm |
kg/m |
19 |
-12 |
3/4 |
18.2 |
19.8 |
34.9 |
21 |
305 |
42 |
610 |
84 |
1220 |
125 |
0.92 |
25 |
-16 |
1 |
24.6 |
26.2 |
41.3 |
17 |
250 |
35 |
510 |
70 |
1020 |
150 |
1.10 |
31.5 |
-20 |
1-1/4 |
30.6 |
33.0 |
50.8 |
14 |
200 |
28 |
400 |
56 |
800 |
200 |
1.30 |
38 |
-24 |
1-1/2 |
36.9 |
39.3 |
57.2 |
10.5 |
150 |
21 |
300 |
42 |
600 |
255 |
1.80 |
51 |
-32 |
2 |
49.2 |
52.4 |
69.9 |
7 |
100 |
14 |
200 |
28 |
400 |
300 |
2.23 |
63 |
-40 |
2-1/2 |
61.9 |
65.1 |
82.6 |
4 |
60 |
8 |
120 |
16 |
250 |
355 |
3.23 |
76 |
-48 |
3 |
74.6 |
77.8 |
95.3 |
4 |
60 |
8 |
120 |
16 |
250 |
460 |
4.25 |
89 |
-56 |
3-1/2 |
87.3 |
90.5 |
107.9 |
3 |
40 |
6 |
80 |
12 |
160 |
530 |
5.05 |
102 |
-64 |
4 |
100.0 |
103.2 |
120.7 |
2.5 |
40 |
5 |
80 |
10 |
160 |
610 |
5.60 |
|
