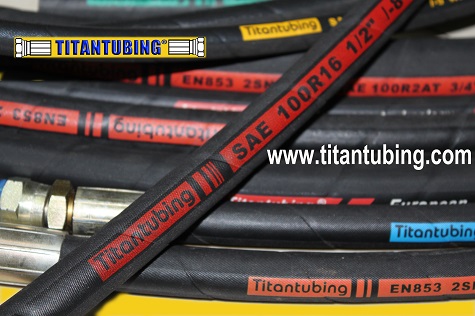

SAE 100 R16

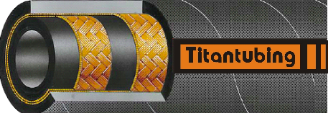

HOSE CONSTRUCTION:
Tube: oil resistant synthetic rubber
Reinforcement: one or two high tensile steel wire braids
Cover: abrasion, ozone and weather resistant synthetic rubber
Temperature range (medium): -40°C to +121°C
Nominal ф |
Inside ф |
Braid ф |
Outside ф |
Working pressure
|
Test pressure |
Burst pressure
|
Bend radius
|
Weight
|
mm |
dash |
inch |
Min |
Max |
Max |
Max |
bar |
psi |
bar |
psi |
bar |
psi |
mm |
kg/m |
6 |
-4 |
1/4 |
6.2 |
7.0 |
12.3 |
14.5 |
350 |
5075 |
700 |
10150 |
1400 |
20300 |
50 |
0.30 |
8 |
-5 |
5/16 |
7.7 |
8.5 |
13.3 |
15.7 |
297 |
4305 |
595 |
8625 |
1190 |
17255 |
55 |
0.34 |
10 |
-6 |
3/8 |
9.3 |
10.1 |
15.9 |
18.8 |
280 |
4060 |
560 |
8120 |
1120 |
16240 |
65 |
0.42 |
12 |
-8 |
1/2 |
12.3 |
13.5 |
19.0 |
22.0 |
245 |
3550 |
490 |
7105 |
980 |
14210 |
90 |
0.54 |
16 |
-10 |
5/8 |
15.5 |
16.7 |
22.5 |
25.4 |
192 |
2780 |
385 |
5580 |
770 |
11165 |
100 |
0.68 |
19 |
-12 |
3/4 |
18.6 |
19.8 |
26.3 |
29.0 |
157 |
2275 |
315 |
4565 |
630 |
9135 |
120 |
0.80 |
25 |
-16 |
1 |
25.0 |
26.4 |
34.0 |
36.6 |
140 |
2030 |
280 |
4060 |
560 |
8120 |
150 |
1.15 |
31 |
-20 |
1-1/4 |
31.4 |
33.0 |
41.9 |
44.3 |
113 |
1635 |
227 |
3290 |
455 |
6595 |
210 |
1.83 |
|
